| ⚡ Electrical Specifications (电气参数) | |
|---|---|
| Efficiency Class (效率等级) | IE2 High Efficiency (IEC 60034-30-1) |
| Rated Power (额定功率) | 0.75 kW - 375 kW (0.75 HP - 500 HP) |
| Rated Voltage (额定电压) | 220V/380V, 380V/660V, 400V, 415V, 460V (Customizable) |
| Rated Frequency (额定频率) | 50 Hz / 60 Hz |
| Number of Poles (极数) | 2P, 4P, 6P, 8P |
| Synchronous Speed (同步转速) | 3000 / 1500 / 1000 / 750 RPM (at 50Hz) |
| Insulation Class (绝缘等级) | Class F (Class H available upon request) |
| Temperature Rise (温升等级) | Class B (80K) |
| Duty Type (工作制) | S1 (Continuous duty) |
| ⚙️ Mechanical & Mechanical Specifications (结构与机械参数) | |
|---|---|
| Frame Size (机座号) | H80 - H355 |

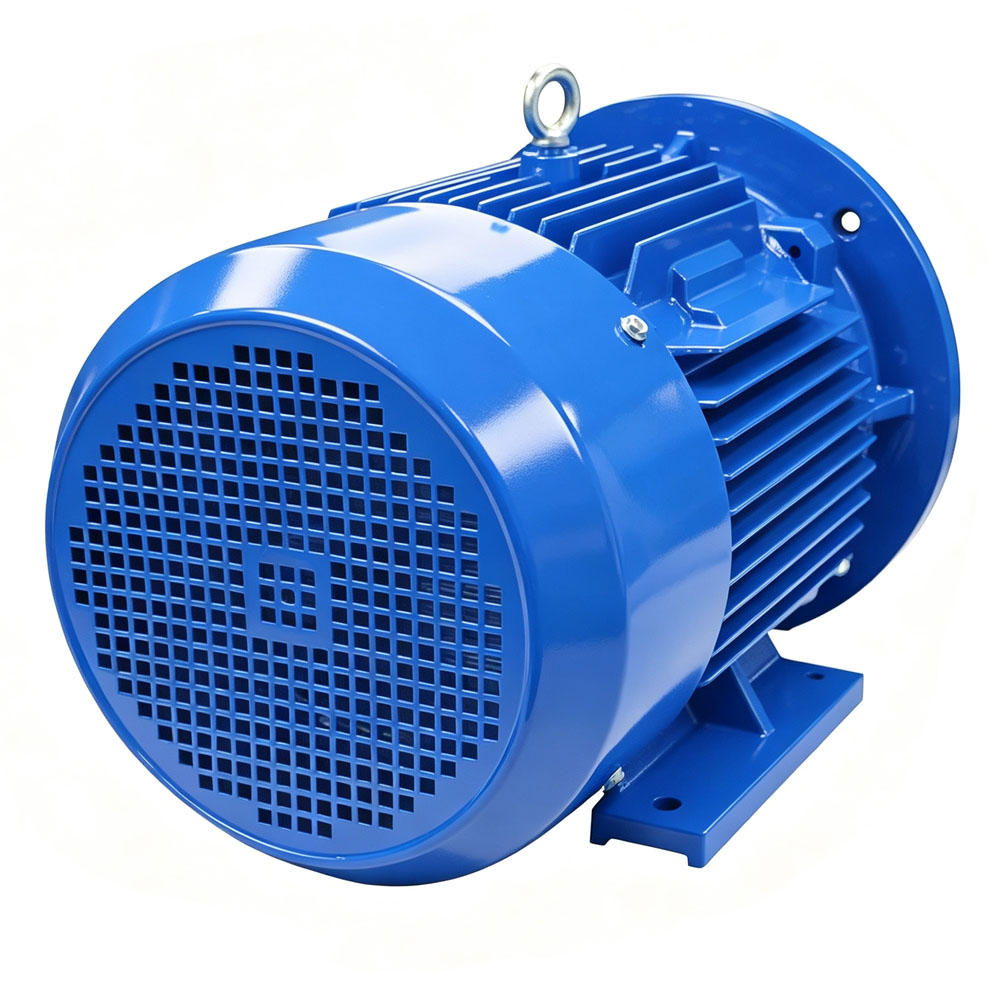

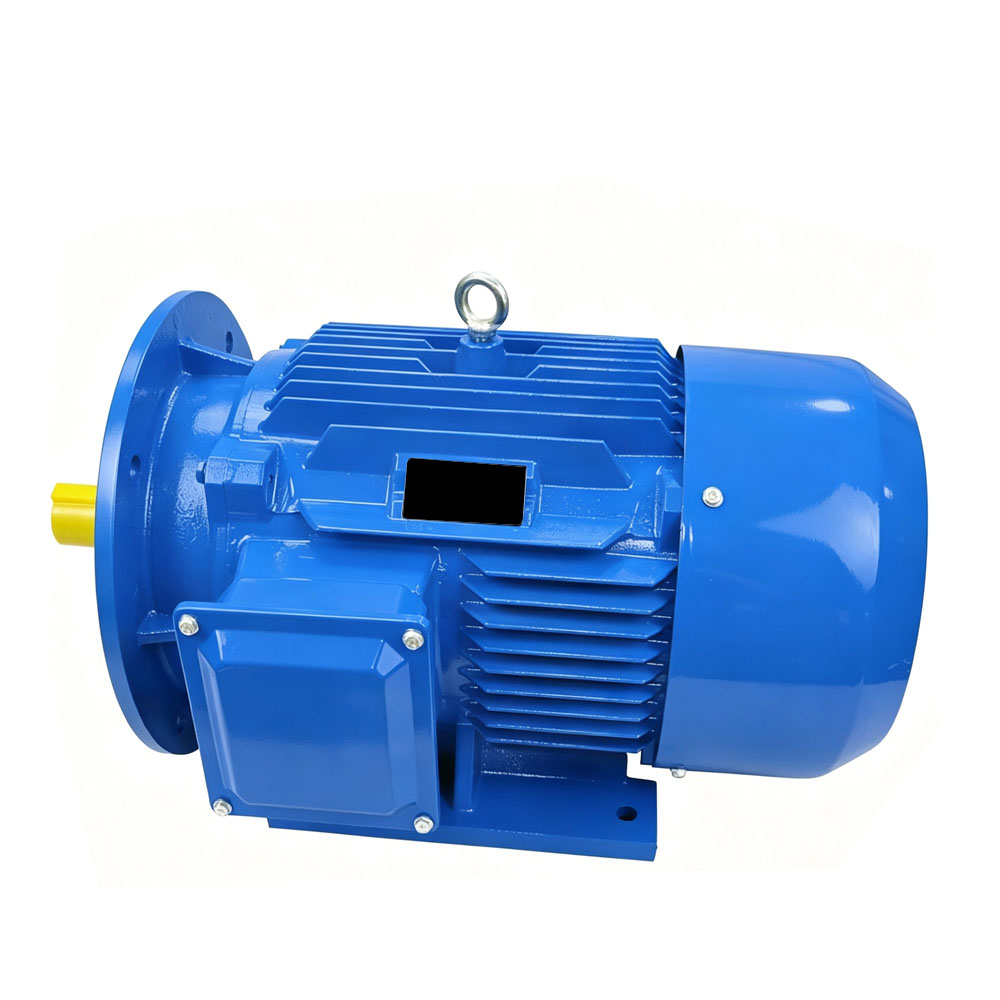

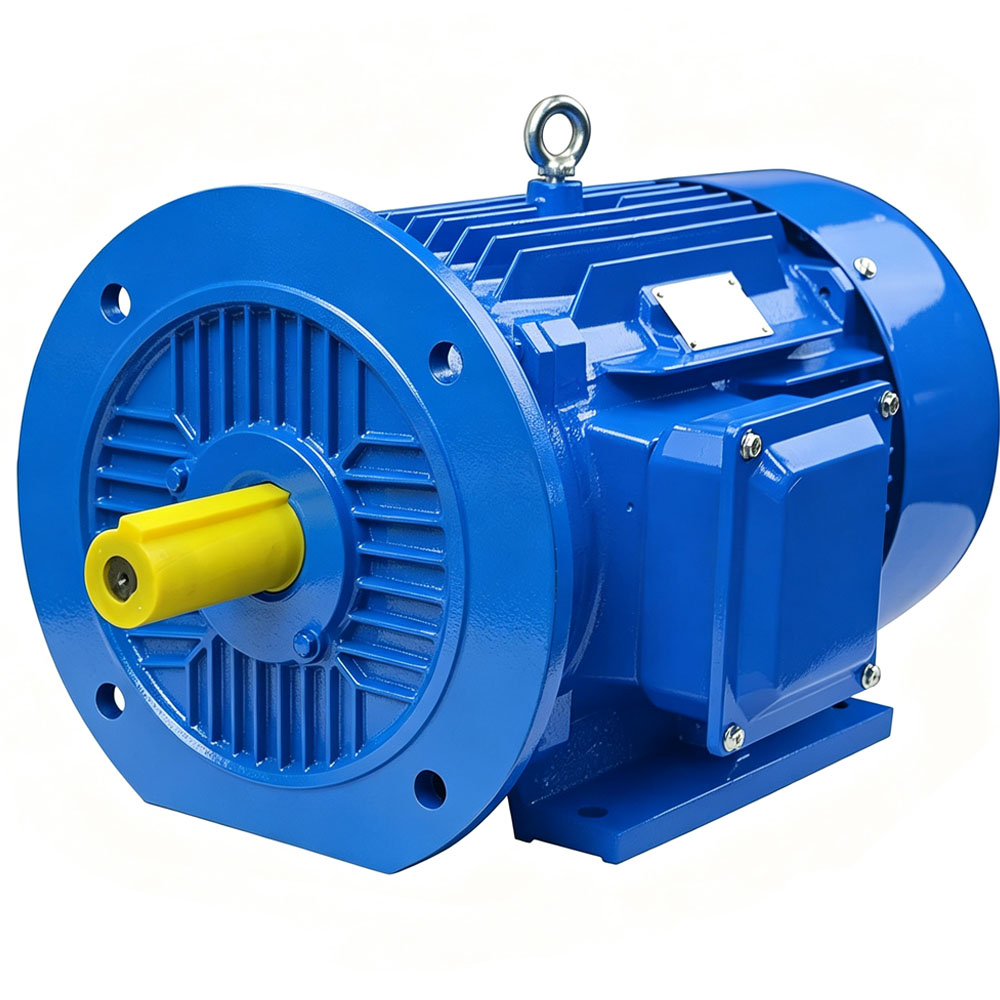

| Mounting Arrangement (安装方式) | B35 (Foot & Flange Mounted), B3, B5, V1 |
| Degree of Protection (防护等级) | IP55 (IP56 / IP65 optional) |
| Housing Material (外壳材质) | Cast Iron (铸铁) / Aluminum (铝壳) |
| Cooling Method (冷却方式) | IC411 (Totally Enclosed Fan-Cooled - TEFC) |
| Bearing Brand (轴承品牌) | C&U / NSK / SKF |
| Terminal Box Location (接线盒位置) | Top (Standard), Right or Left side optional |
| 🌐 Operating Conditions & Compliance (工作条件与标准) | |
|---|---|
| Ambient Temperature (环境温度) | -15°C to +40°C |
| Altitude (海拔高度) | Not exceeding 1000m above sea level |
| International Standards (国际标准) | IEC 60034-1, IEC 60034-30, DIN, ISO9001 |
| Certifications (产品认证) | CE, CCC, RoHS |
